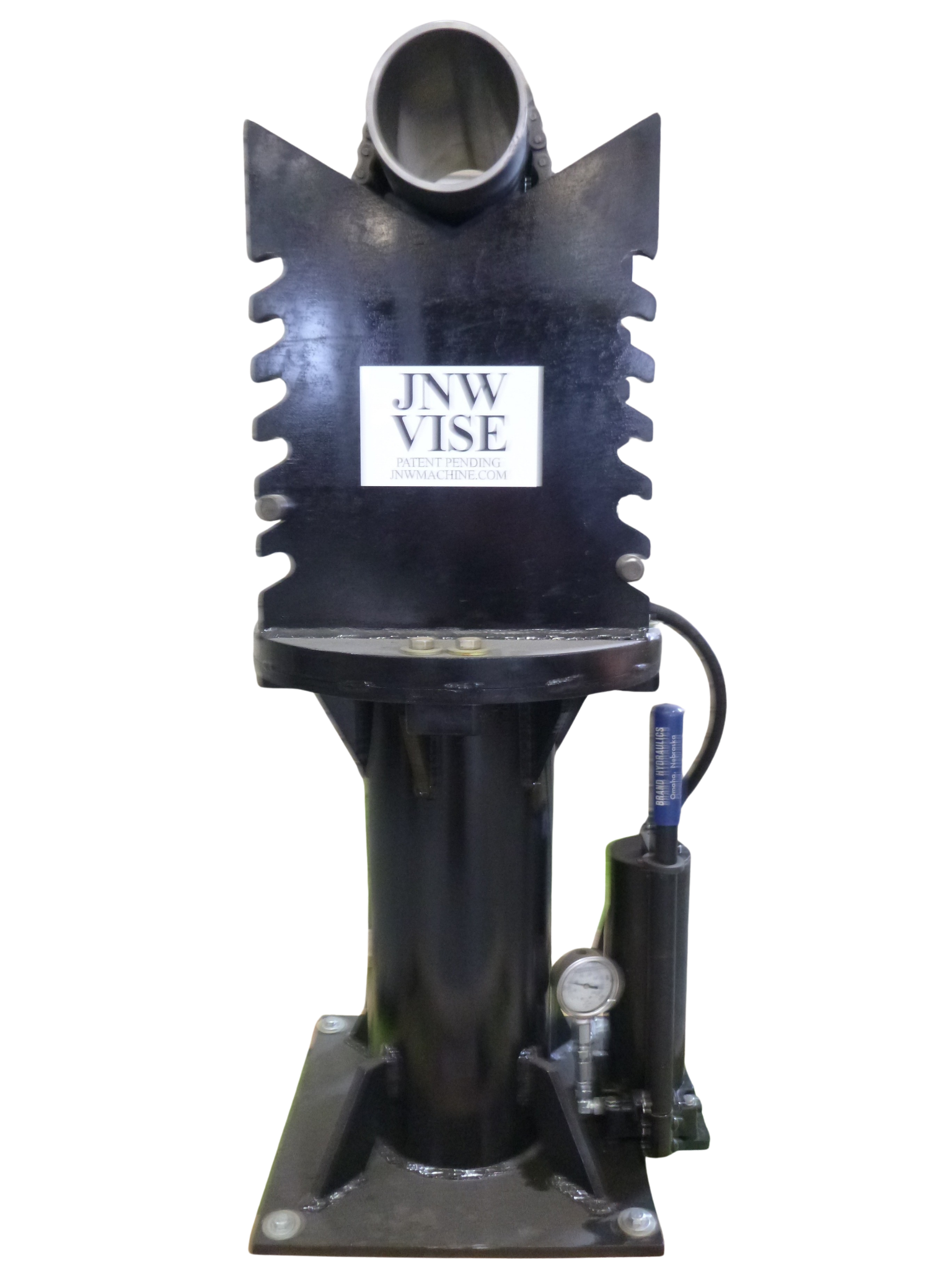

The Revolutionary JNW VISE
The vise is powered by a 2500 PSI 2 stage hand pump that supports a 3 1/2 inch bore hydraulic cylinder with a load column of 28,000 lbs. Extensive testing and in-shop use have shown that a 3/16th wall cylinder can be held securely without over-stressing the cylinder.

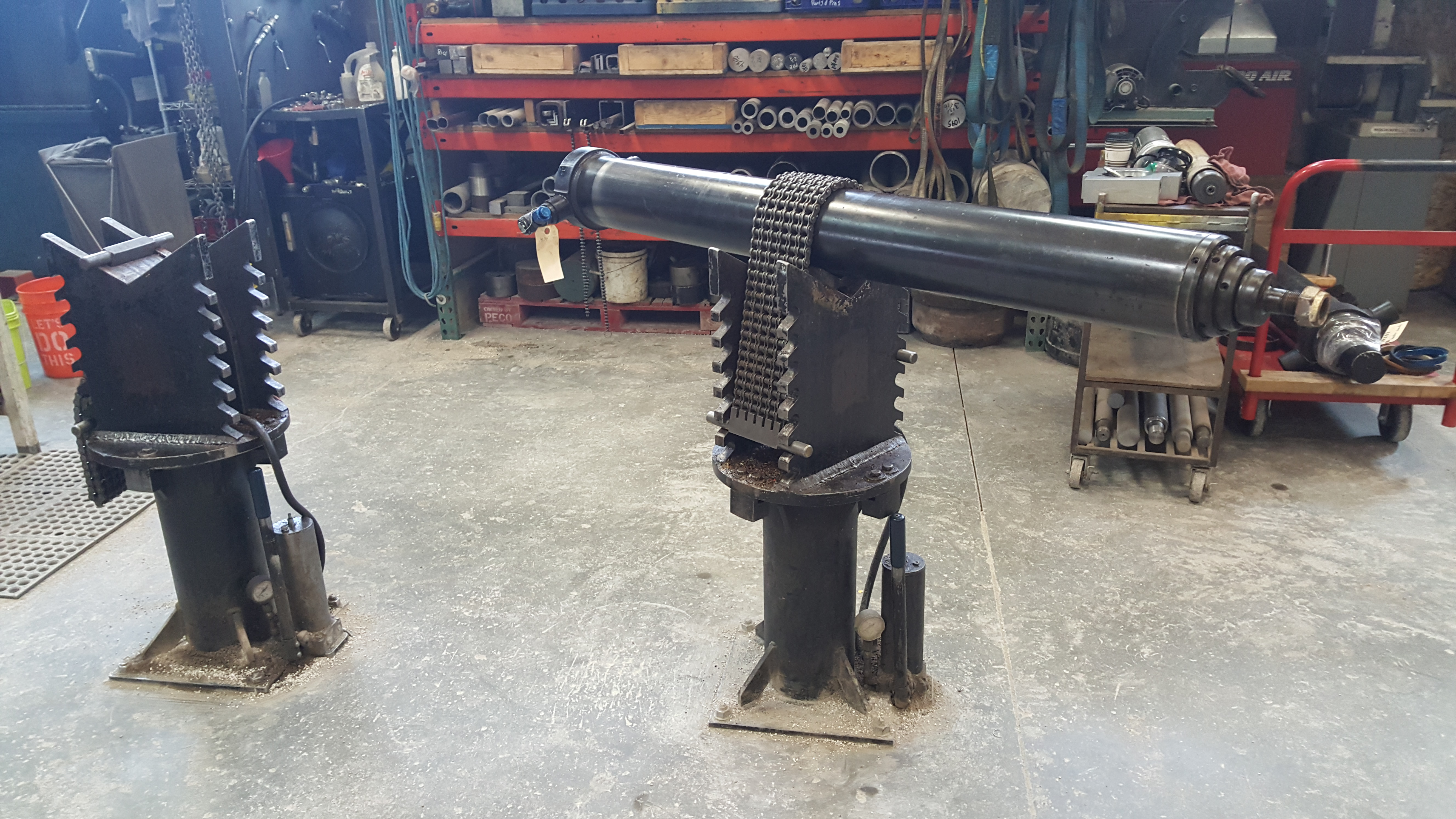

The Vise can be used in a mulitude of ways tha to assist your productivity and safety. It can Securely hold a variety of different shapes and sizes.
Adjustable and Versitile
The Vise can be indexeda t an angle of up to 22 degrees by simply loosening the 8 tie down bolts around the base of the vise, then re-tighten after teh appropriate position is achieved. If you want more than 22 degrees of rotation, you will need to purchase a 36, or unbolt the vise from teh floor and index at 90 degrees
Complete And Scalable
The capacity of the JNW Vise is from 2"-12 Inch diameter. Material can have round, square, or rectanbular shapes. There is no length restriction as long as it is correctly fastened to a suitable footing. We also build a smaller version for service vehicles and a custom version for greater than 12" cylinders. (A longer chain Assembly can be purchased to acheive a few more inches in diameter instead of purchasing a larger vise)
Fast Delivery
Fast Delivery to keep your operation running.
A perfect combination of quality, speed, and precision
A Creative Application Of Principles To Design and Develop A New Type Of Apparatus

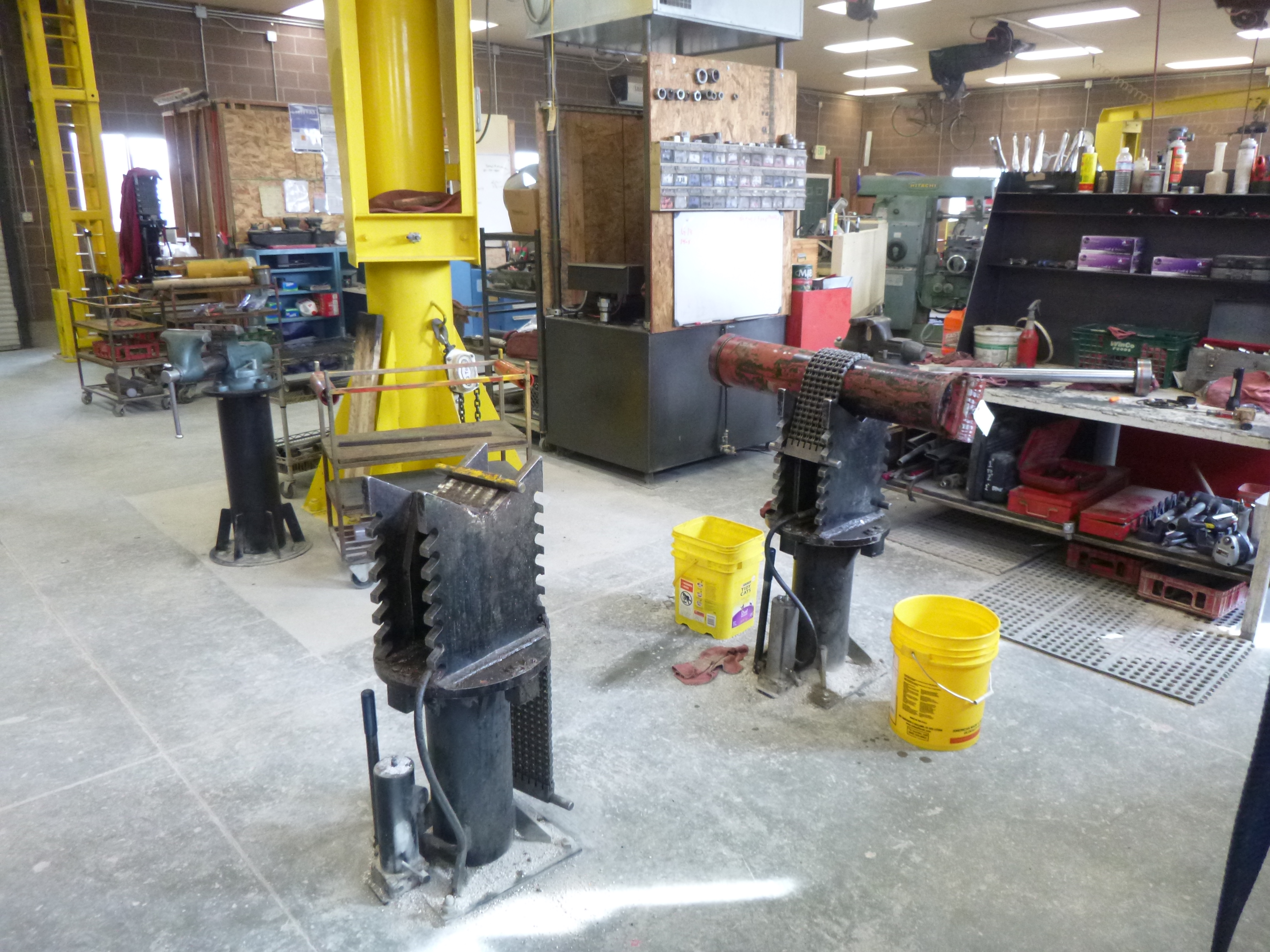

Your new vise will not only save your shop time and clear up precious floor space, but the safety factor is beyond compare for you and your employees.
Extremely Safe and Easy to Use
Simply lock the chain retainer in an suitable notch and rap the chain assemble over the cylinder
Keep taught so the chain retainer will align with a notch on the apposing side
Simply engage the hand pump to apply pressure to the JNW Vise until desired tension is achieved
Call Or Email Today to Purchase!
Call Us
801-773-1065
Visit the Shop
1505 W 3300 S
Ogden, UT 84401
john@jnwmachine.com
JNW Vise Capacities
| Tubes | Up to 20″ Diameter / No Max Length |
| Rods | Up to 17″ Diameter / No Max Length |
